Customize Carbon Fiber Sheet

Carbon fiber board is a type of panel known for its high strength, lightweight, corrosion resistance, and high-temperature resistance. It is made by molding and hot-pressing a composite of carbon fiber and resin. Carbon fiber is a high-performance fibrous material with exceptional tensile strength and stiffness, as well as excellent heat resistance and chemical stability. The resin fills the gaps between the carbon fibers, providing protection and securing them in place.

 Carbon fiber boards have a wide range of applications, including high-strength components such as aircraft fuselages and race car chassis. They are also used as lightweight materials in designs like bicycle frames and golf club shafts. Common types of carbon fiber boards include pure carbon fiber boards, carbon fiber composite boards, carbon fiber reinforced boards, and ultra-lightweight carbon fiber boards.

Specification:
Product Name:Carbon Fiber Sheet
Size:100x200mm/200x300mm/300x400mm/400X500MM/500x500mm/500x600mm/400x1000mm/500x1000mm/600x1000mm/1000x1000mm/customize size
Thickness(mm):0.2/0.5/0.8/1/1.2/1.5/1.8/2/2.5/3/4/5/6/7/8/customize thickness
Color:Black

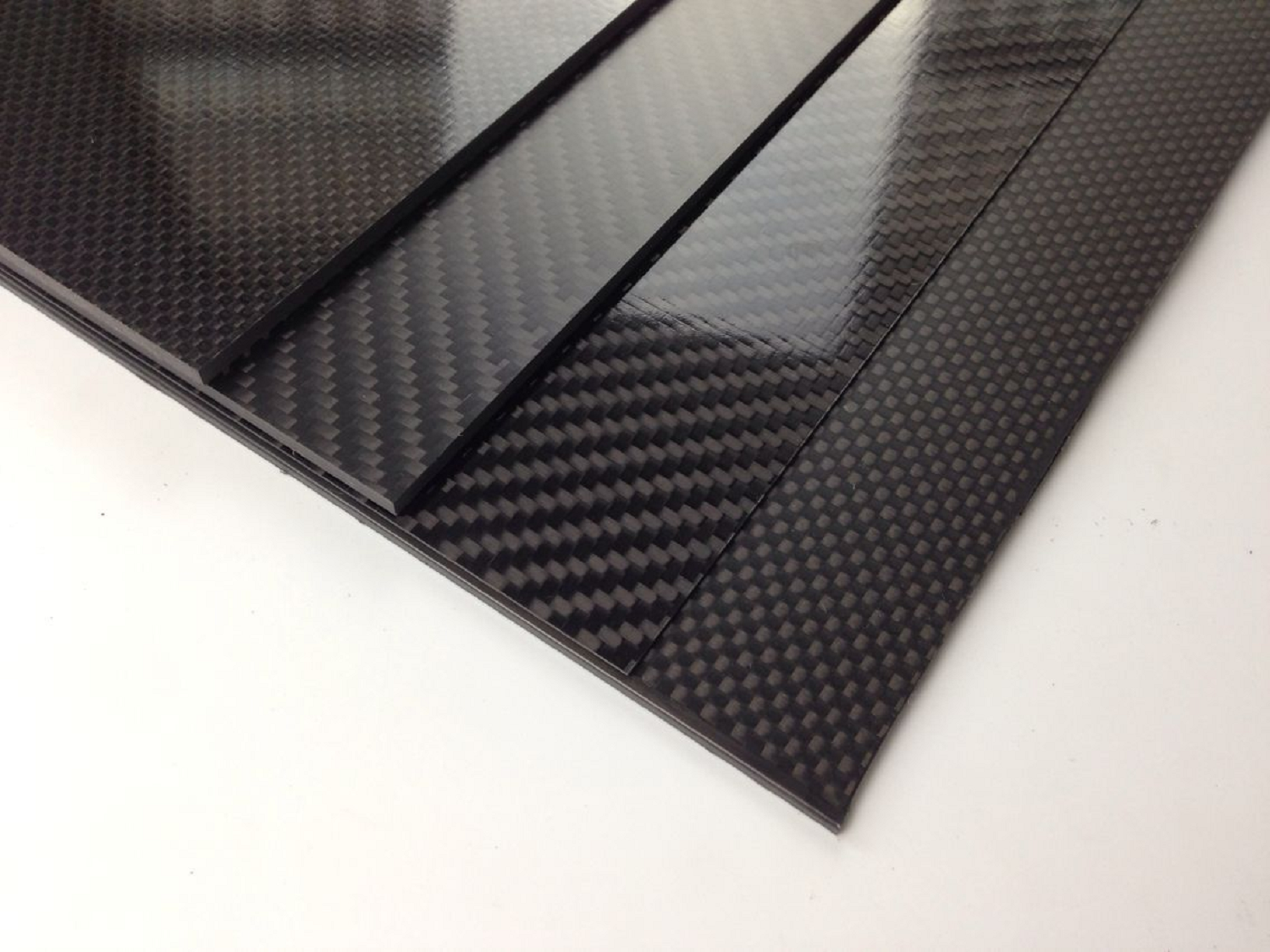

Texture:Plain Weave Glossy/Twill Glossy/ Plain Weave Matte/Twill Matte

Features:
1. High Tensile Strength: The tensile strength of carbon fiber is 6 to 12 times that of steel, reaching over 3000 MPa;
2. Low Density, Lightweight: The density of carbon fiber is less than one-fourth that of steel;
3. Corrosion Resistance: Carbon fiber tubes have very good chemical stability. In the face of corrosive environments, it still maintains very good stability;
4. Thermal stability: Carbon fiber is able to maintain a low coefficient of linear expansion even when there is a temperature difference, and will not creep easily, which can better ensure tube accuracy;
5.Widely used in aerospace industry, Bicycle industry, sports industry, UAV, Auto industry etc.

If you need other Size/Length of carbon fiber sheets. tubes, rods, please send email to service@fancywing.com. We can customize them for you.
